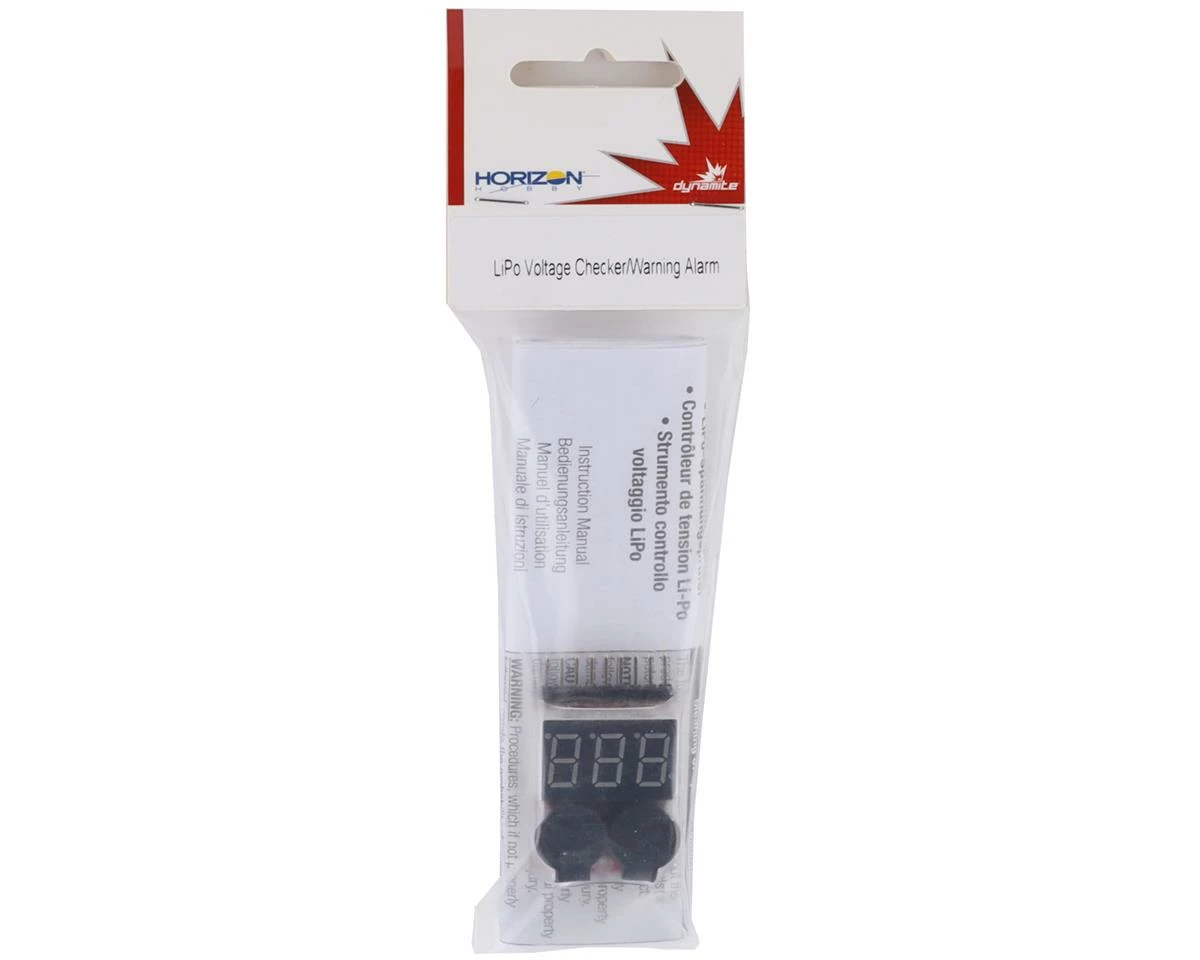

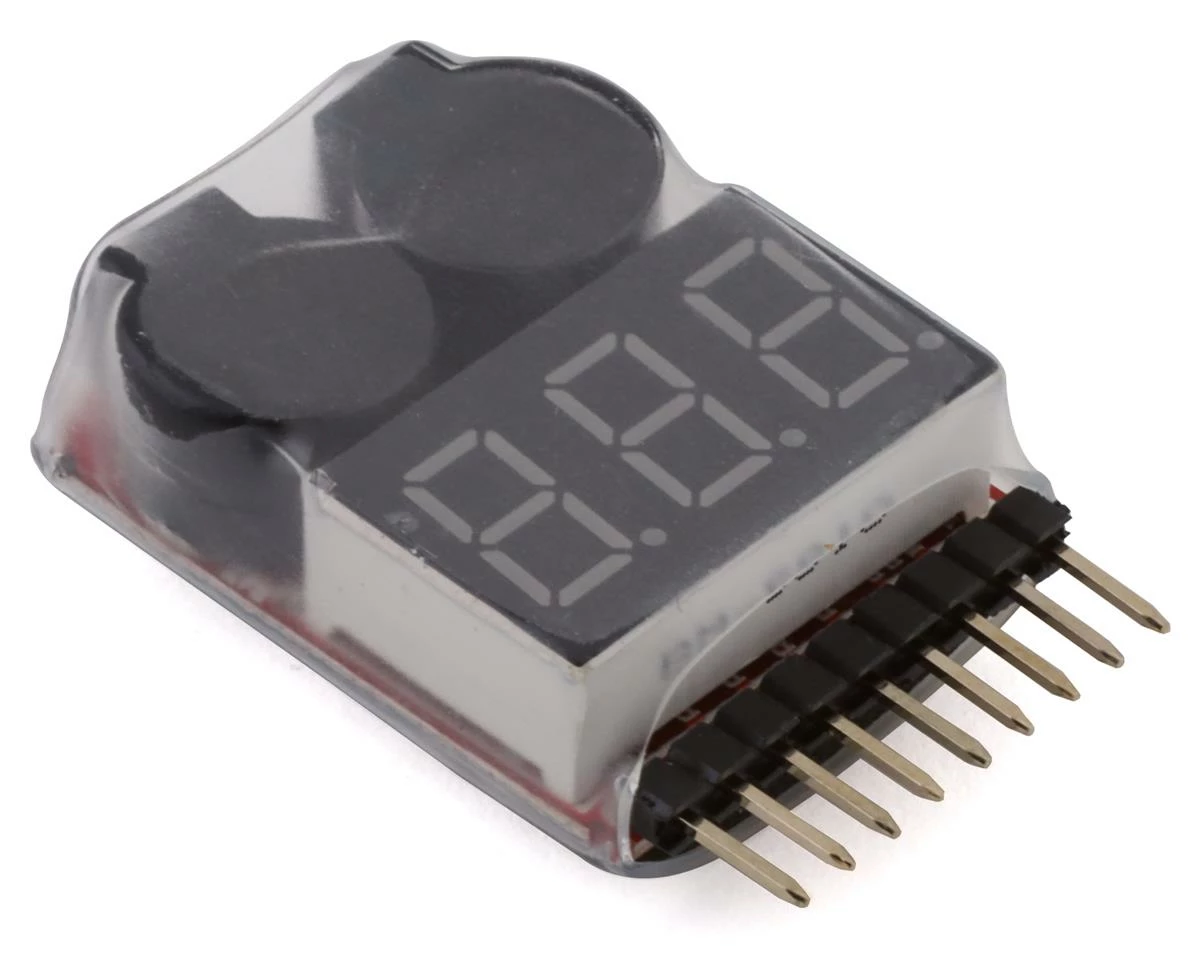

Dynamite LiPo Voltage Checker Warning Alarm

Dynamite LiPo Voltage Checker Warning Alarm.

Features:

• Pack voltage display range: 0.5V-36V
• Unit checks and displays the cell count, voltage of the overall pack and then each cell individually up to 8S
• Protects drivers from over-discharging LiPo’s when using an ESC that doesn’t have Low Voltage Cutoff
• Compatible with 1-8s Lipo/Li-ion/LiMn/Li-Fe
• LED status indicator and high pitch warning sound
• Low voltage alarm mode for 2-8S
• Cell voltage display range: 0.5V-4.5V
• Programmable voltage threshold
• Protects aircraft from unwanted landings and batteries from over-discharging
• High pitched low voltage warning buzzer
• When the cell voltage is below the set value, the buzzer will sound along with red LED light, default value 3.3V
• Large, digital LED display
• Voltage detection precision to 0.01V
• Size: 1.53 x 0.94 x 0.35 in (39mm x 24mm 9mm)
• Ideal for all electric vehicles, boats, and aircraft using LiPo batteries
• Monitors a batteries low voltage down to the cell level
• Alarm set value range: OFF-2.7V-3.8V
• Compatible with JST-XH type balance connectors

Specifications:
Field Equipment: Voltmeters
Product Length: 1.53 in (39mm)
Product Width: 0.94 in (24mm)
Product Height: 0.35 in (9mm)
Accessory Type: Meters & Checkers

This product was added to our catalog on April 5, 2021
